TP-T450 wet tissue machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: Facial Tissue,V Fold Wipes, Napkins, Non-Woven Fabric, Dust-Free Paper
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

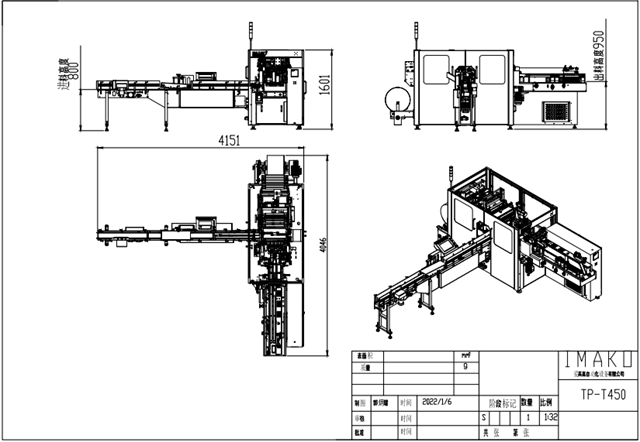

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)


Wet tissue machine has become a popular item in many households and offices around the world. This machine is the perfect solution for those who want to store and dispense wet tissues easily and efficiently. A wet tissue machine is a must-have accessory for anyone who spends a lot of time outdoors or frequently travels by car or public transportation.

How does a wet tissue machine work?

A wet tissue machine works on the principle of pulling and cutting. The machine has a roll of dry tissue paper that is pulled out and run through a container full of an alcohol-based cleaner. The paper is then cut into smaller pieces and packed into a container that can be closed tightly to prevent the tissues from drying out.

Why choose a wet tissue machine over traditional methods?

A wet tissue machine is the perfect solution for people who want to avoid using disposable wet wipes, which can be harmful to the environment. Wet tissue machines are also more convenient than carrying around a pack of disposable wipes or a bottle of wet cleaning spray. The wet tissue machine ensures that you always have a clean, moist tissue available when you need it, without the need for water or soap.

What are the benefits of using a wet tissue machine?

One of the major benefits of using a wet tissue machine is the convenience it offers. You no longer need to look for a sink or make use of running water to clean your hands. Wet tissue machines also help to save money in the long run, compared to disposable wet wipes or bottled wet cleaning sprays. They also help to reduce waste, protecting the environment from the damage caused by disposable wipes and other single-use cleaning solutions.

In conclusion, wet tissue machines are becoming more and more popular due to the convenience and efficiency they offer users. By using a wet tissue machine, you can enjoy the benefits of a clean, moist tissue whenever you need it, without having to rely on traditional methods. Wet tissue machines are also more environmentally friendly and cost-effective in the long run, making them an excellent accessory for households and offices around the world.



TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.



facial tissue.jpg

Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

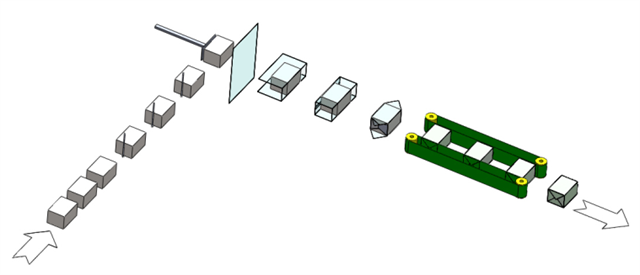

TP-T180流程图1 .png

TP-T450 wet tissue machineMain Parts

1. Film Dragging Roll

The Film Dragging Rollers are an important component of the Kitchen paper rolls packing machine. They are used to pull the film across the surface of Kitchen paper rolls and ensure that the film is tightly wrapped around the rolls.

2. Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

3. Hook piece

The hook piece is a critical component that helps to hold the filled diaper bags in place as they move through the packaging process. The hook piece is typically mounted on the bed plate of the machine and is designed to engage with the edges of the diaper bags, ensuring that they remain in the correct position as they are sealed and cut.
