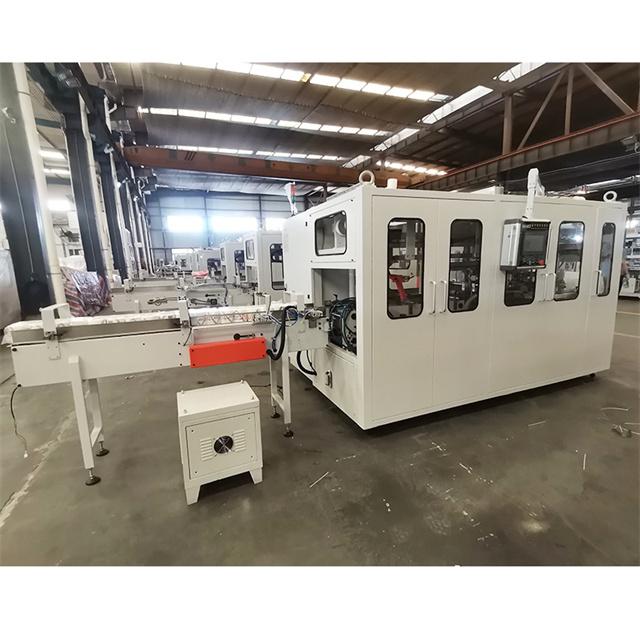

TP-B30R Multi Rolls Kitchen Paper Bundle Packing Machine Bag Wrapping Machine

Price: Negotiable
Model Number: TP-B30R
Power: 20.2KW
Application: Automatic bundle packing single packed/unpack core/coreless roll paper
Weight: 3400KG
Output: 25 packs/min
Packaging dimension: Length (L): 170-660 Width (W): 180-260 Height (H): 85-170 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

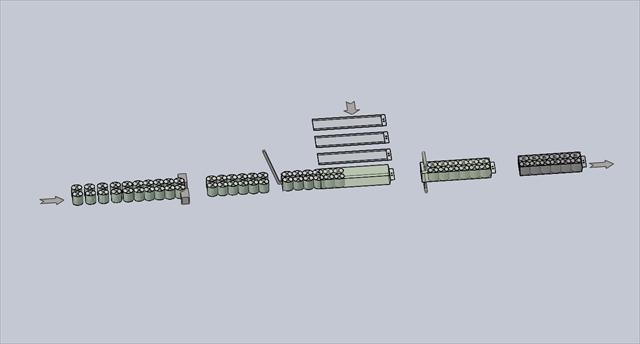

★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operation and maintenance.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B30R main parameter configuration

Specification/Model/

ltem

TP-B30RV、TP-B30RM

Scope of application

Single core/coreless roll paper

Feeding type

ASF automatic double lanes

intelligent feeding system

Exclude standing

device

Design speed

25 packs/min

relate to product size

Stable speed

15-22 packs/min

relate to product size

Packaging film

install structure

Dual bag racks

Gusset type

Vacuum mould

Scrap cut off mode

Insert & cut teeth share

Bag storage QTY

600 pre-bag

Can customize

if size exceed

Machine weight(KG)

3400

Bag material

PE film

Thickness 0.05mm

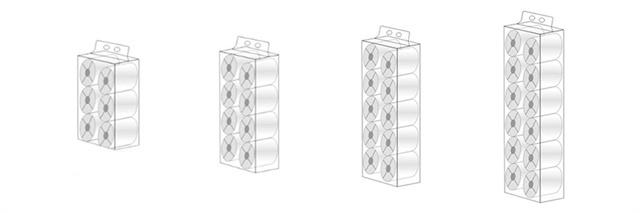

Packing style(mm)

①L90-170

D.90-105

Suitable for corel

coreless roll paper

2x3、 2x4、2x5、2x6

②L85-170

D.90-130

2x3、2x4、2x5

Air compression(MPA)

Pressure 0.6

Flow 300Lmin

Buyer provide

Bag type

Pre-bag

Air hole≥2.5mm

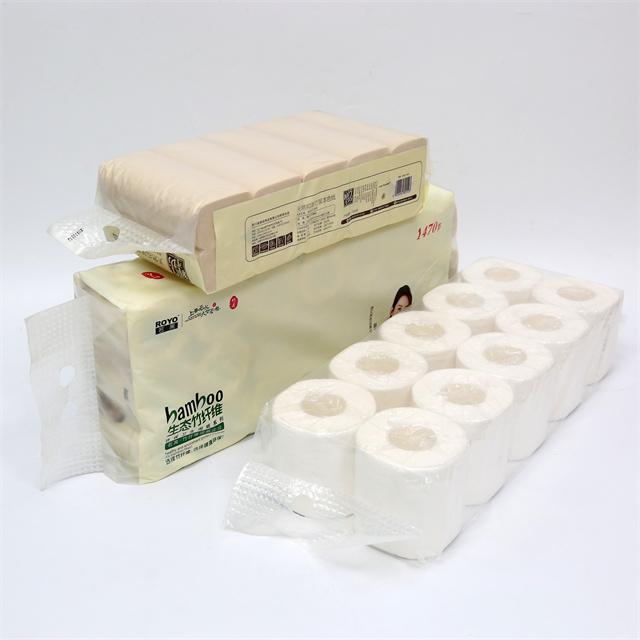

TP-B30R series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.







Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30R 1.jpg


TP-B30R Multi Rolls Kitchen Paper Bundle Packing Machine Bag Wrapping MachineMain Parts

1. Film cutting knife holder

The Film-cutting knife holder is also responsible for protecting the blade from dirt and debris that may be present in the manufacturing process. This helps to ensure that the blade remains sharp and effective, which is essential for maintaining the quality of the packaged Kitchen paperrolls.

2. The Film Frame

The Film Frame is also designed to be adjustable, which allows for different sizes and shapes of film to be used as needed. This is important for ensuring that the film fits snugly around Kitchen paper rolls and provides a secure and tamper-proof package.In addition to supporting the film, it also helps to ensure that the film is properly aligned with the rollers and other components of the machine.

3. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.
