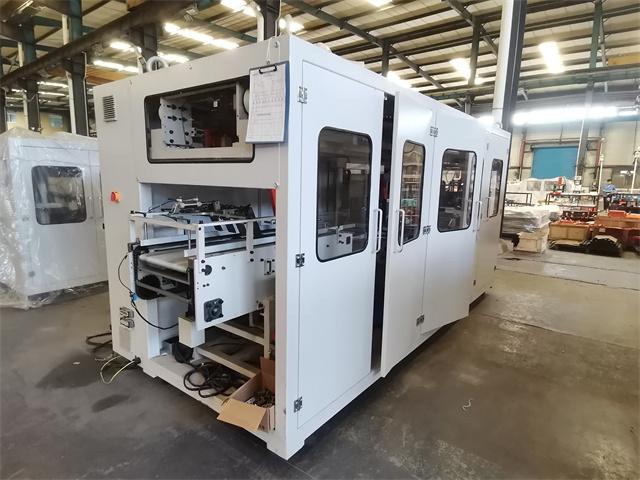

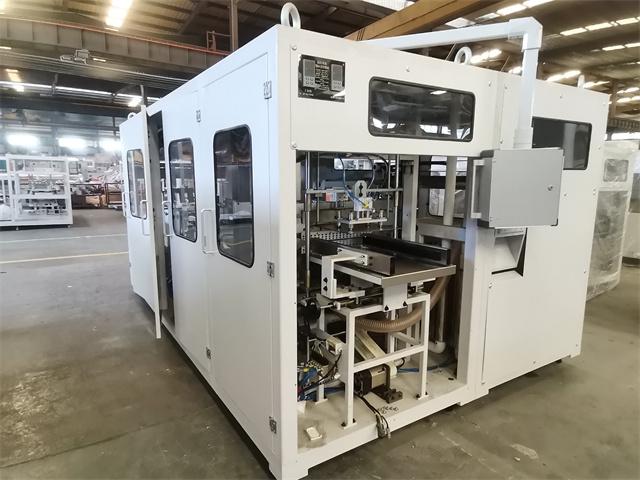

Full Automatic Kitchen Towel Tissue Paper Roll Packaging Machine

Price: Negotiable
Model Number: TP-B30RE
Power: 19KW

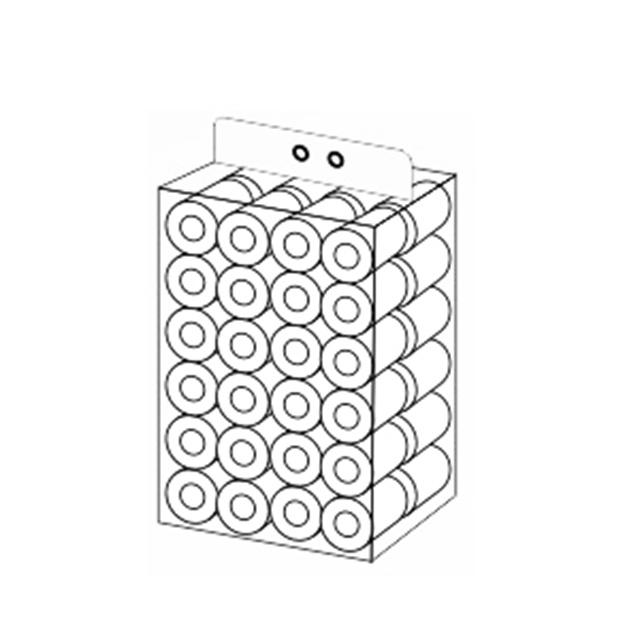

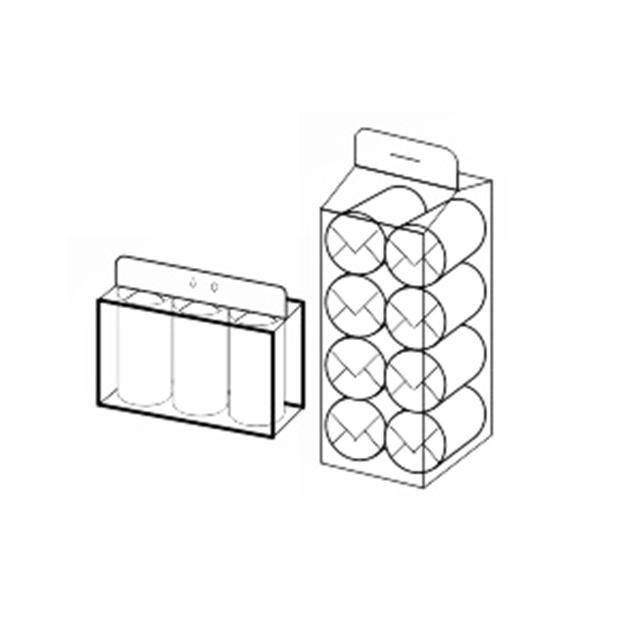

Application: Toilet Roll Paper/Kitchen Towel Bundle Pack
Weight: 3400KG
Output: 22Pack/min
Packaging dimension: Length (L): 300-690 ,Width (W): 160-440 ,Height (H): 80-280
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote



Max. Work Speed:

22Pack/min

Total Power:

19KW

Pack Range(mm):

Length (L): 300-690

Width (W): 160-440

Height (H): 80-280


TP-B30RE main parameter configuration

Specification\Model\

ltem

TP-B30REV、TP-B30REM

Scope of Application

Core、coreless roll paper

Feeding type

ASF auto double lanes feeding system

Design speed

22 packs/min

Stable speed

20packs/min(relate to product size)

Gusset type

Vacuum forming mould

Cut off modo

lnsert & cut

Bag storage structure

Dual bag racks

Bag storage qty

600 bags

Bag material

PE film

Compressed air(MAP)

Pressure O.6MPA Flow 30l/min

Power supply

380V/50HZ

Total motor power(KW)

19

Machine weight (KG)

3400

Bag type

premade bag

Servo control shaft nos

10

Electrical control system

VEICHI,MITSUBISHI

Temp.system

YUDILAN

Pneumatic system

SMC.AlRTAC

Optional device

lnk code printer.thermos transfer printer

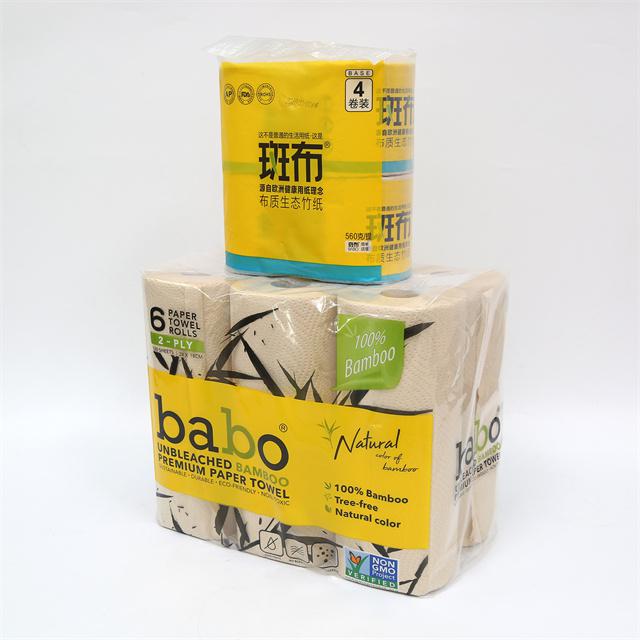

Kitchen Towel Tissue Paper Roll Packaging

Kitchen Paper Roll Packaging




Full Automatic Kitchen Towel Tissue Paper Roll Packaging MachineMain Parts

1. Film cutting knife holder

The Film-cutting knife holder is also responsible for protecting the blade from dirt and debris that may be present in the manufacturing process. This helps to ensure that the blade remains sharp and effective, which is essential for maintaining the quality of the packaged Kitchen paperrolls.

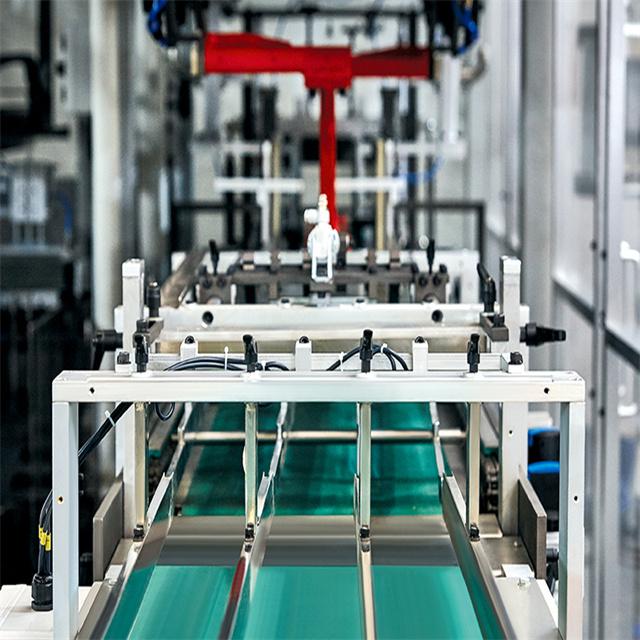

2. Conveyor Timing Belts

The Belt is designed with specific dimensions and specifications that are tailored to the requirements of Kitchen paper roll packing machine.The belt is also designed with specific grooves and ribs that help to improve its grip on the rollers and ensure smooth and consistent movement.

3. Bag rack part

Dual bag racks,can storage maximum 600 bags.
